JPMS Modules

Lists the Java Platform Module System (JPMS, see JEP 261) module of each artifact on the classpath, with one row per artifact.

The table contains the following columns:

Artifact

The name of the artifact.

Module name

The name of the Java module. It is taken from the module descriptor or the manifest, or derived from the JAR file name using the standard naming algorithm if neither is available.

Definition

Where the module definition comes from:

  • Module-Info: An explicit module descriptor (module-info.class).
  • Manifest: The Automatic-Module-Name attribute in the manifest.
  • Auto-generated: Derived from the JAR file name, because the artifact has neither a module descriptor nor the manifest attribute.

Automatic

Whether the module is an automatic module. Shows No for a module with an explicit descriptor, and Yes otherwise.

Requires

The modules that this module requires, one per line. This is empty for automatic and auto-generated modules, which do not declare dependencies.

Exports

The packages that this module exports, one per line. Shows [all packages] for automatic and auto-generated modules, which export all of their packages.

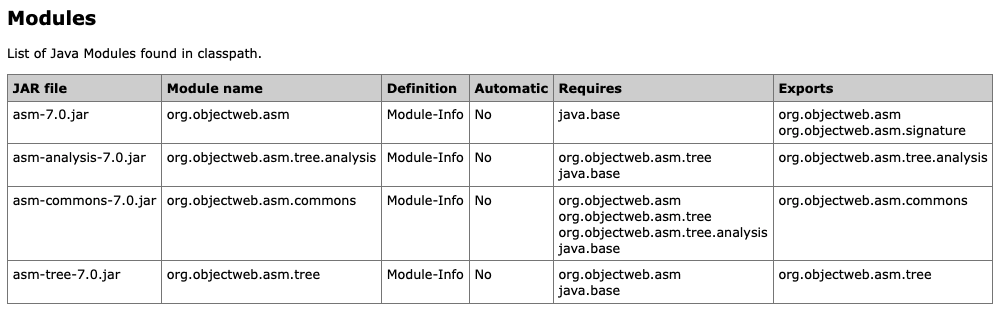

Example

JPMS Modules
